Triple R Lighting '22+ Polaris RZR A-Pillar Mount Kit

Triple R Lighting '22+ Polaris RZR A-Pillar Mount Kit



Designed and engineered by one the leading manufacturers of metal works parts for the UTV market based in the US, Triple-R Lights is delighted to offer the Polaris RZR A-Pillar Mount Kit. Suitable for Pro-R or Turbo-R vehicles, from 2022 onwards, the mounts are especially well suited to mounting the RP Series lights (available with Spot or Hyperspot beam patterns).

The mounting brackets are made from 5mm mild steel, with satin black powder coat, and supplied complete with M12 fasteners. The mounts locate into original fixing locations on the RZR’s A-pillars, resulting in a clean, robust install guaranteed to last and impress.



Features:

• Produced from 5mm mild steel with satin black powder coat finish
• Supplied with M12 stainless steel hardware
• Locates in original fixing locations on the Polaris RZR
• Compatible with RZR Pro-R / Turbo-R, model year 2022+

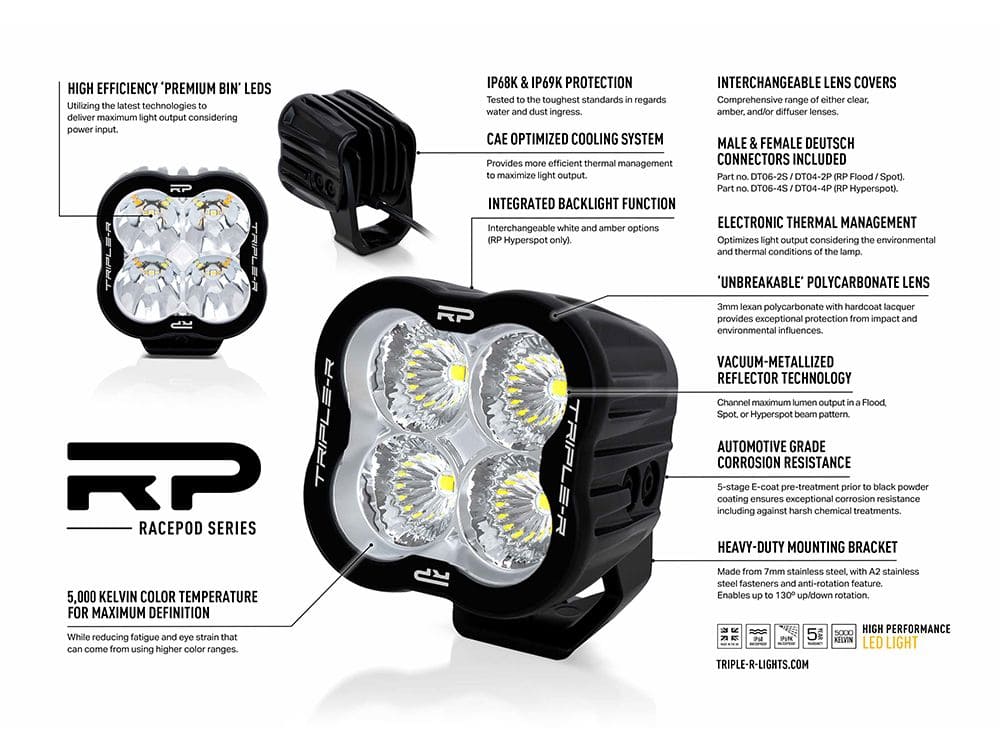

• Optimised for RP Series installation
• Designed & manufactured in the USA



Technical Specifications:

1x RP Hyperspot	1x RP Spot	1x RP Flood
Voltage Range (DC)	10-32V	10-32V	10-32V
LED Life	50,000 hrs	50,000 hrs	50,000 hrs
Weight	2.4 lbs	2.4 lbs	2.4 lbs
HIGH BEAM FUNCTION
Total Luminous Flux	8940 Lm	8940 Lm	8940 Lm
Total Driver 'FOV' Flux †	3268 Lm	6079 Lm	7420 Lm
Colour Temperature	5000k	5000k	5000k
Number of High Output LEDs	4	4	4
Power Consumption	75 W	75 W	75 W
Current Draw (at 14.4V)	5.2 A	5.2 A	5.2 A
DIMENTIONS
Width	4.3''	4.3''	4.3''
Depth	4.2''	4.2''	4.2''
Height	4.3''	4.3''	4.3''
PHOTOMETRIC DATA
Horiz Beam Angle	10°	20°	60°
0.25 lx Line	1049m	785m	192m
0.5 lx Line	742m	555m	136m
1 lx Line	524m	392m	96m
3 lx Line	303m	227m	55m

† Driver FOV flux is a measure of effective lumens taking consideration of the amount of light in a driver's 'field-of-view' defined as an area +/- 45^o left/right, and +/- 10^o up/down. For more information – click here.



What's Included:

• x2 A-Pillar Mounting Plates
• x2 Retention Plate
• x4 M12 x 70mm Bolts
• x4 M12 Washers




Instructions:

• Polaris RZR 2022+ A-Pillar Mount Kit - Fitting Instructions - Triple-R Lights
• Utility-25 MAXX - Sales Information Card (US)
• Utility-25 - Sales Information Card (US)
