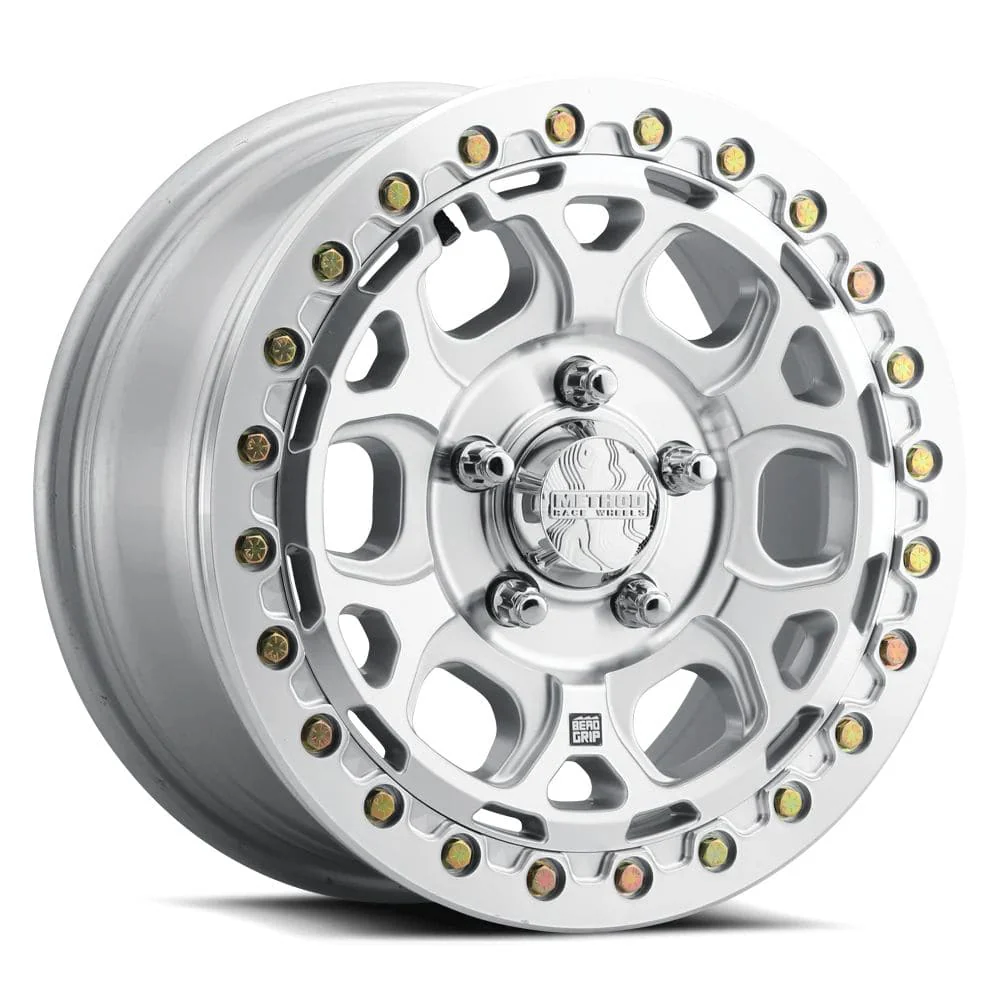

Method 416 UTV Beadlock Wheel - Machined

Method 416 UTV Beadlock Wheel - Machined



High Performance Wheels for High Performance Machines. Modern UTVs don’t just go farther, they go harder. They climb steeper, hit faster, and take punishment that used to end a ride early. This wheel was built for that reality. Featuring the strength from Method's race proven engineering combined with patented Bead Grip Technology and a traditional Beadlock for the ultimate in tire security. For the full-throttle runs, the unexpected hits, and the kind of terrain that doesn’t forgive mistakes. Because when your machine evolves, your gear has to keep up.



Features:

• Solid A356 aluminum with T6 heat treatment construction

• Patented Bead Grip bead seats on inner lip

• Forged 6061 aluminum V.8 Beadlock ring

• Grade 8 black or zinc-plated Beadlock hardware kit included

• Aggressive split-spoke design with debossed Method logos

• Reinforced inner lip provides extreme strength and durability

• Aggressive safety hump on bead seats further prevents de-beading

• Snap-in Topo center cap with embossed Method logo

• Bead Grip badge inset on spoke

• Super strong 1800 lbs. load rating




Specifications:

Wheel Diameter (in)	15	15
Wheel Width (in)	7	7
Bolt Pattern	5x114.3 (5x4.5)	6x139.7 (6x5.5)
Offset (mm)	55	75
Hub Bore (mm)	68	78.3
Back Spacing (in)	6.10	6.90
Wheel Weight (lbs)	18.3	18.05
Max Load (lbs)	1800	1800
