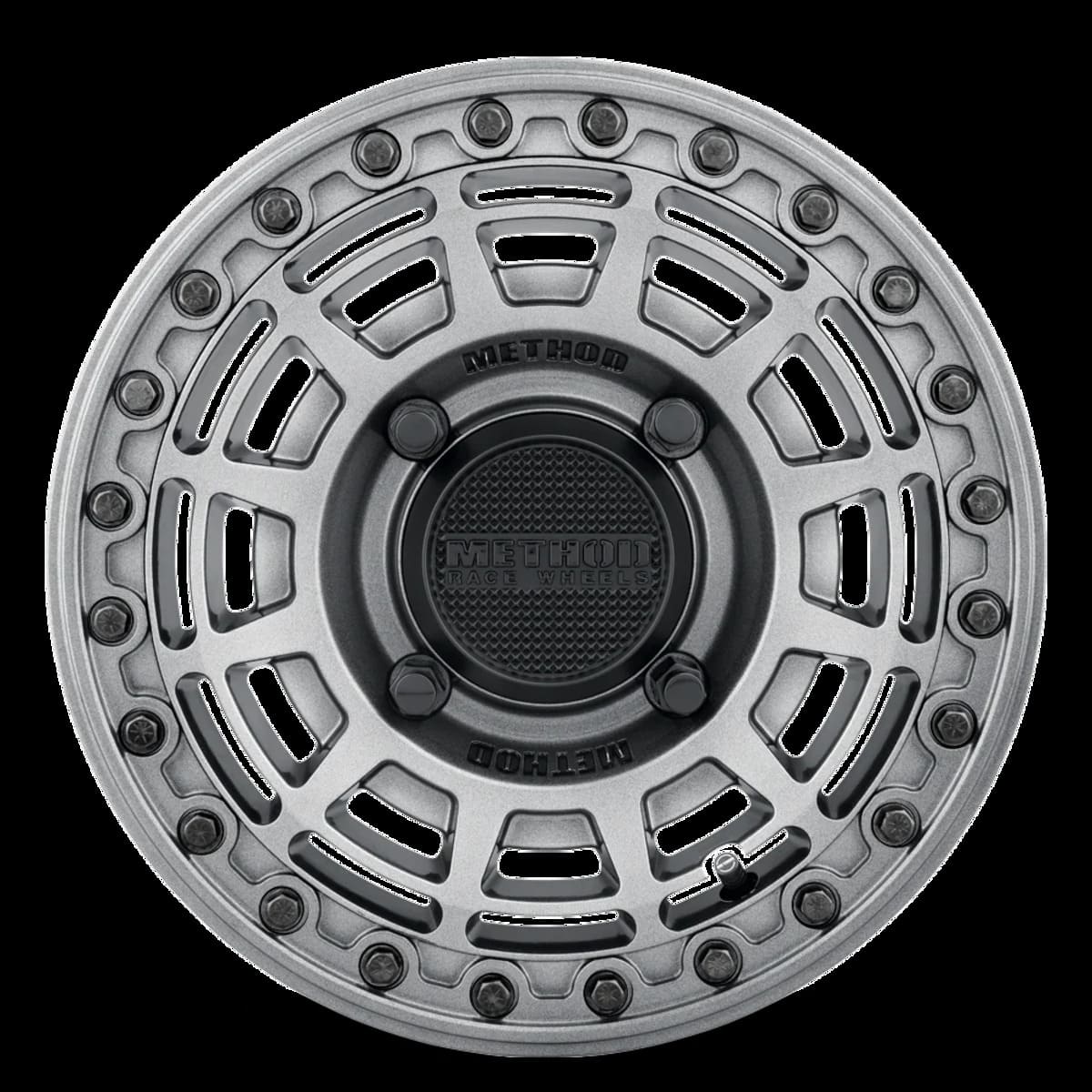

Method 415 UTV Beadlock Wheel - Gloss Graphite with Gloss Graphite Ring

Method 415 UTV Beadlock Wheel - Gloss Graphite with Gloss Graphite Ring



With an aggressive style design, the 415 UTV Beadlock adds a fresh look to the high-performing Method cast UTV Beadlock lineup. Engineered for strength and performance, the new 415 UTV Beadlock will get your UTV to its destination, no matter the terrain.



Features:

• Solid A356 aluminum with T6 heat treatment construction

• Aggressive multi-faceted window design with debossed METHOD logos

• Reinforced inner lip provides extreme strength and durability

• Over-engineered to exceed SAE 2530 specifications

• Forged 6061 aluminum V.7 beadlock ring

• Grade 8 black zinc-plated beadlock hardware kit included

• Snap-in center cap with textured finish and embossed METHOD logo

• Super strong 1600 lbs. load rating



Specifications:

Part Number	Wheel Diameter (in)	Wheel Width (in)	Bolt Pattern	Offset (mm)	Hub Bore (mm)	Back Spacing (in)	Wheel Weight (lbs)	Max Load (lbs)
MR415570471252B	15	7	4x136	38	106	5.33	21.44	1600
MR415570461252B	15	7	4x156	38	132	5.33	21	1600
MR415570121252B	15	7	5x114.3 (5x4.5)	38	76	5.33	21.66	1600
MR415510471264B	15	10	4x136	25	106	6.25	23.42	1600
MR415510461264B	15	10	4x156	25	132	6.25	22.98	1600
MR415510121264B	15	10	5x114.3 (5x4.5)	25	76	6.25	23.65	1600
