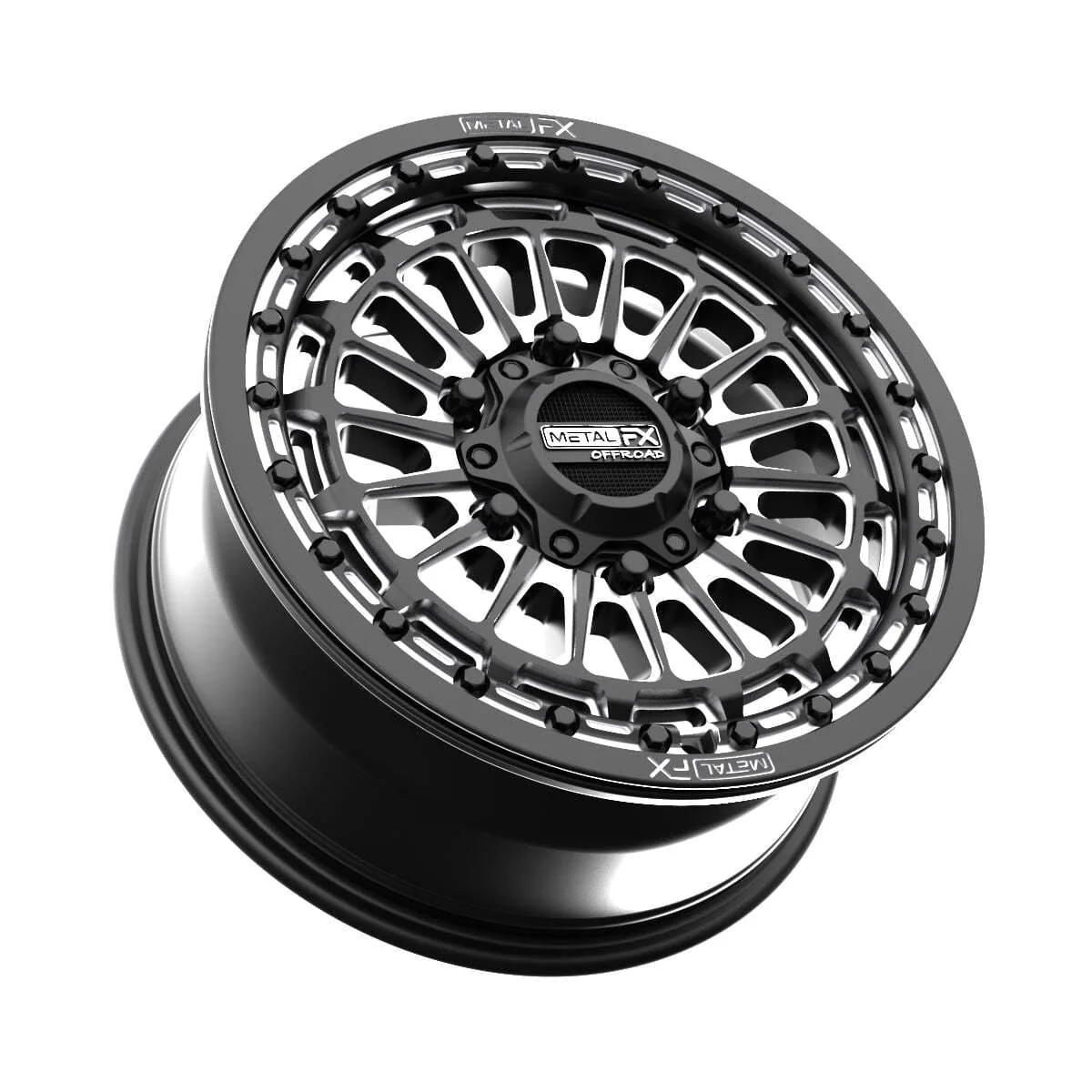

MetalFX Delta 6R Beadlock (6 Lug) - Satin Black Contrast Cut

MetalFX Delta 6R Beadlock (6 Lug) - Satin Black Contrast Cut



The Metal FX Offroad Delta 6R UTV Wheel combines our technical expertise with uncompromised attention to detail creating the ultimate in style and performance. The design of the Delta 6R includes a unique concave Center and a 6061- T6 Forged Aluminum Beadlock for enhanced strength and durability. Each model in the Metal FX Offroad Delta 6R Series is designed specifically for Can-Am Maverick R 6-Lug platforms.

• Super strong 6061-T6 Aluminum Beadlock Ring
• Lightweight 20lbs - 15x7 / 22lbs - 15x10



Fitment:

• Maverick R (2024+)

• Maverick R X (2024+)

• Maverick R X RS (2024+)

• Maverick R Max (2025)

• Maverick R Max X (2025)

• Maverick R Max X RS (2025)
• 15x7 +38mm:

  • These wheels will make the machine 3.25" wider than factory with the factory tires. Aftermarket tires may cause width gain to vary.

• 15x10+38mm:

  • These wheels will make the machine 3.25" wider than factory with the factory tires. Aftermarket tires may cause width gain to vary.

• 15x7 +38mm Delta 6R w/ 35” Roxxillas = 83” total width

• 15x10 +38mm Delta 6R w/ 35” Roxxillas = 83” total width

• 15x7 +38mm Delta 6R w/ 33x10 SS360 = 79” total width

• 15x10 +38mm Delta 6R w/ 33x12 SS360 = 82” total width

• If you’re looking for a narrower dirt setup, our 15x7 +61mm Outlaw 6R wheels measure 2” narrower in total width.



Specifications:

SKU	Model	Finish	Size	Bolt Pattern	Backspace	Offset	UTV/ATV Offset	Bore	Weight	Load	Lip Size
78342	Delta 6R Beadlock	Satin Black Contrast Cut	15x7	6x139.7 (6x5.5)	5.4	+38mm	5+2	78.1	19.8	1260	1.01
78341	Delta 6R Beadlock	Satin Black Contrast Cut	15x10	6x139.7 (6x5.5)	6.9	+38mm	6.5+3.5	78.1	22.1	1260	2.47
