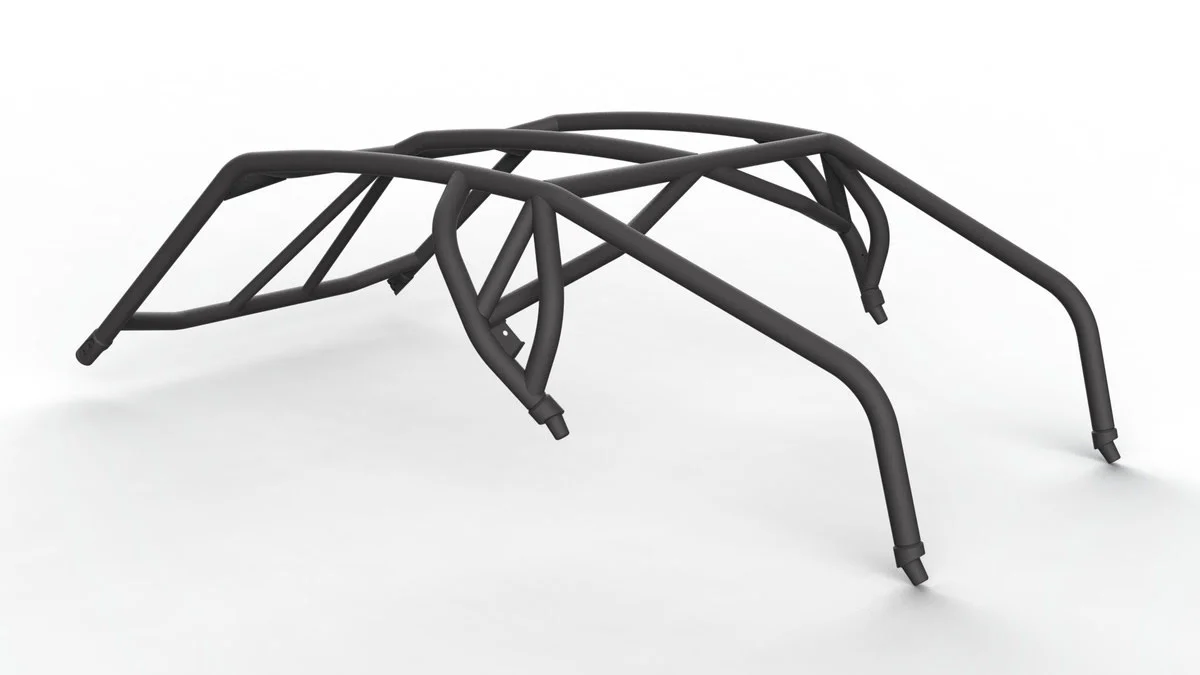

LSK Polaris RZR Pro R 2 Seat Radius Cage

LSK Polaris RZR Pro R 2 Seat Radius Cage



Introducing The Weld It Yourself RADIUS Cage Kit For Your 2022+ Polaris PRO R 2 Seater! This Cage Is Built With .120″ & .095″ DOM Tubing That Can Be Either MIG Or TIG Welded Without The Use Of A Specialized Fixture – Just Install The Supplied Connectors To The Stock Cage Locations And Piece Together The Cage On The Vehicle.



Includes:

• 18 Laser Cut Tube Pieces With Laser Etched Part Numbers On Each Component

• 1.75″ OD .120 Wall DOM Tubing For The Main Bars and B-Pillar Tubes

• 1.75″ OD .095 Wall DOM Tubing For Remainder 1.75” Tubes

• 1.25″ OD .095 Wall DOM Tubing For Windshield Cross Bars

• (2) A Pillar, (2) B Pillar & (2) C Pillar Bungs To Attach To OEM Cage Location


Dimensions: 86 × 24 × 8 in



Requires:

• Welding – This Kit Can Be Welded Together Once Configured On The Vehicle




Upgrades:

• Aluminum Roof – .06 Thick Roof W/ Small Visor Bend – Complete With Weld On Tabs And 1/4″ Grade 8 Hardware

• Windshield Kit – Complete Bolt On Windshield Kit With .09″ Powdercoated Black Aluminum Shroud With DOT Glass And Adjustable Air Vents




Notes:

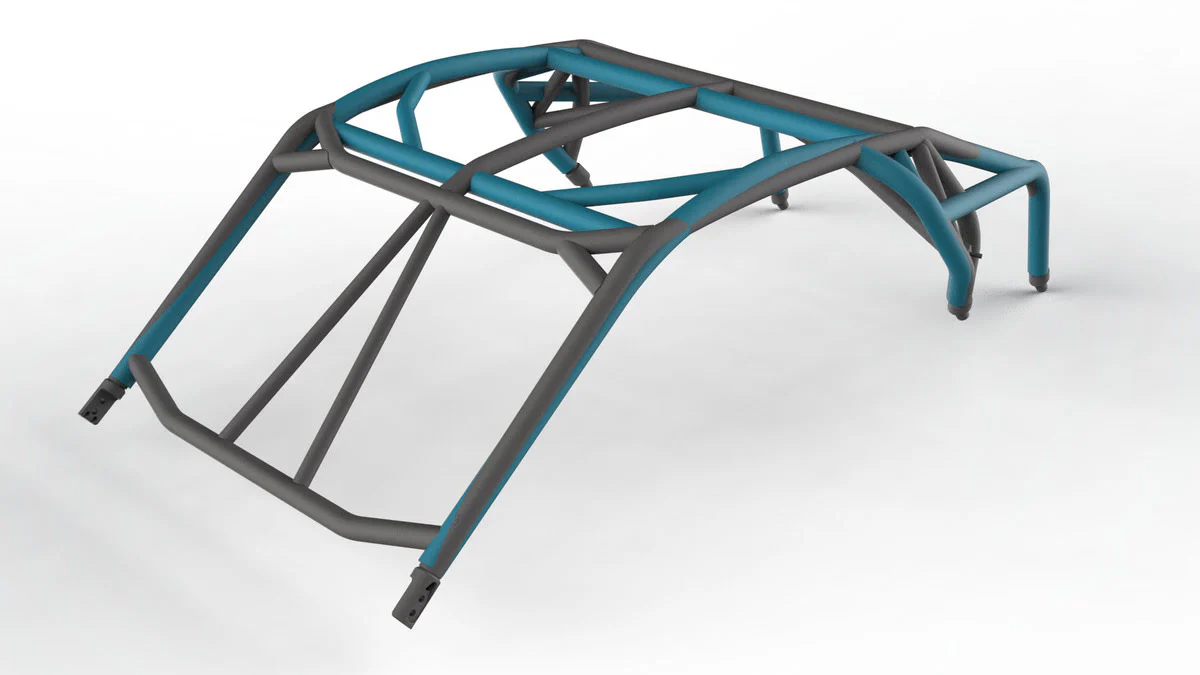

• This Cage Sits In Similar Fashion To OEM Cage, See Render With LSk Cage (Grey) Compared To OEM Cage (Blue)

• Aluminum Roof Upgrade Is A Single Piece Of .06 Aluminum With A Slight Visor Bend Up Front To Match The Cage Radius

• Must Use A Floor Jack Under Center Of Vehicle During Installation To “Level Out” The Frame Rails – Failure To Do So Will Make Aligning The Cage At The Factory Locations Difficult
