LSK Can-Am Maverick X3 2 Seat Radius Cage

LSK Can-Am Maverick X3 2 Seat Radius Cage

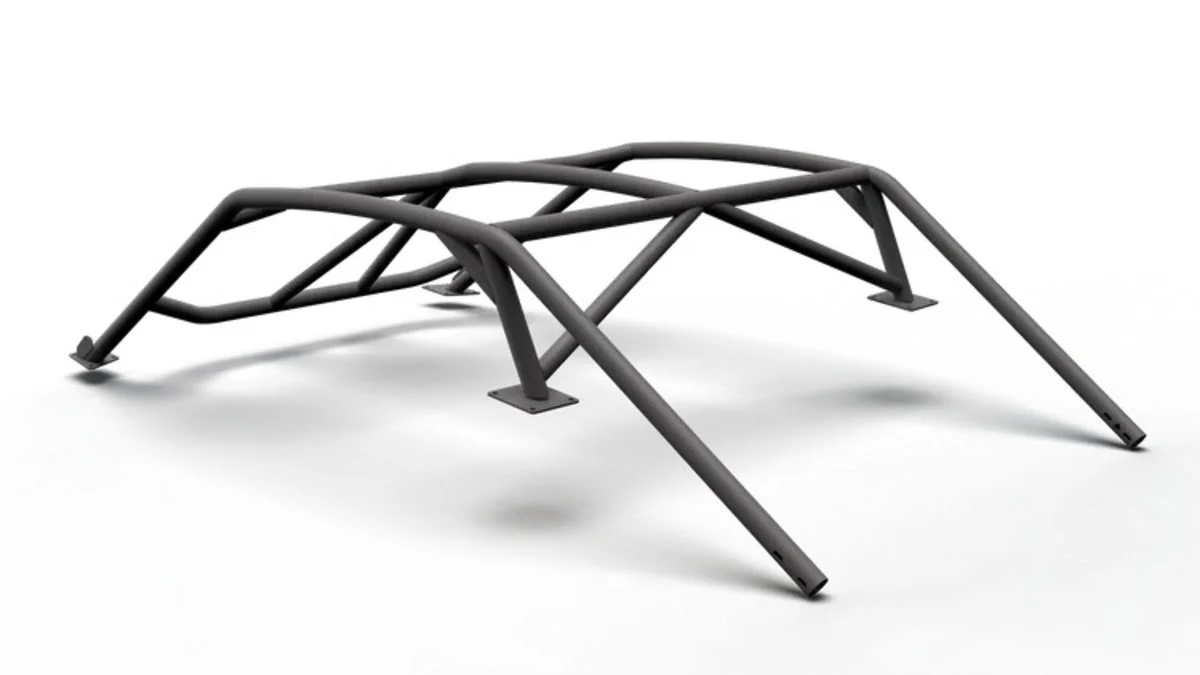

Introducing The Weld It Yourself RADIUS Cage Kit For The Can-am X3! This Cage Is Built With .095″ DOM Support Tubing That Can Be Either MIG Or TIG Welded Without The Use Of A Specialized Fixture – Just Install The Supplied Connector Plates To The Stock Cage Locations And Piece Together The Cage On The Vehicle.



Includes:

• 20 Laser Cut Tube Pieces With Laser Etched Part Numbers On Each Component

• Made 1.75″ & 1.50″ .095 Wall DOM Tubing

• Mounting Plates & Hardware To Mount In Factory Landing Locations


Dimensions: 92 × 26 × 7 in



Requires:

• Welding – This Kit Can Be Welded Together Once Configured On The Vehicle




Upgrades:

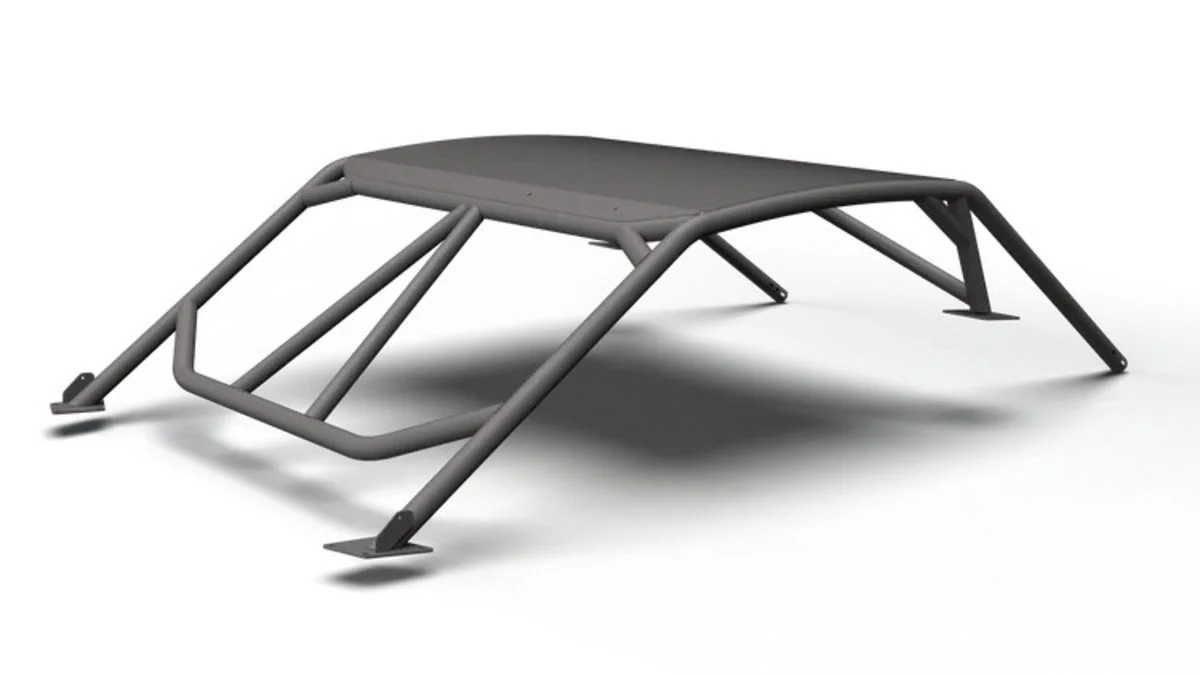

• Aluminum Roof – .06 Thick Roof W/ Visor Bend – Complete With Weld On Tabs And 1/4″ Button Head Hardware


Notes:

• Late Model X3’s Come With A Clamp Style Mount At The A-Pillar Landing Point –
• This Clamp Must Be Cut Off And The Supplied Flat Plate Will Be Installed In Its Place.
