LSK '14+ Polaris RZR XP 4 Seat Radius Cage

LSK '14+ Polaris RZR XP 4 Seat Radius Cage

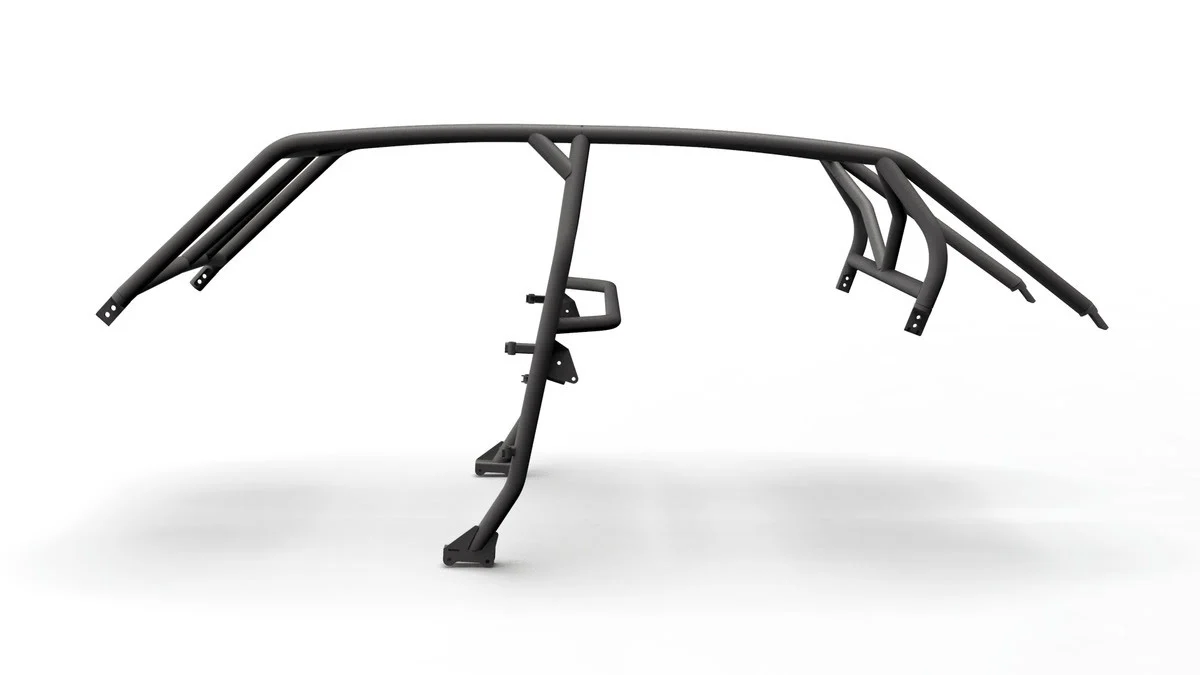

Introducing the weld it yourself RADIUS cage kit for your 2014+ Polaris XP1000 4 Seater! This cage is built with .120″ &  .095″ DOM tubing that can be either MIG or TIG welded without the use of a specialized fixture – just install the supplied connectors to the stock cage locations and piece together the cage on the vehicle.



Includes:

• 17 Laser cut tube pieces with laser etched part numbers on each component

• 1.75″ OD .120 Wall DOM Tubing for main structure (2 piece main hoops)

• 1.75″ OD x .095 Wall For Main Structure Components & 1.50″ OD x .095 Wall DOM Tubing For Windshield Cross Bars

• (2) A Pillar & (4) B or C Pillar clamps to attach to OEM cage location


Dimensions: 108 × 24 × 24 in



Requires:

• Welding – This kit can be welded together once configured on the vehicle




Upgrades:

• Aluminum Roof – .06 thick 2 piece roof w/ small visor bend & bead rolled connection – Complete with weld on tabs and 1/4″ grade 8 hardware




Notes:

• Measuring from the frame mounting bolt on the B Pillar of your RZR to 42.60″ will give you the total height of the LSK cage (See photo in product gallery)

• Aluminum roof upgrade is a single piece of .06 aluminum with a slight visor bend up front to match the cage radius
