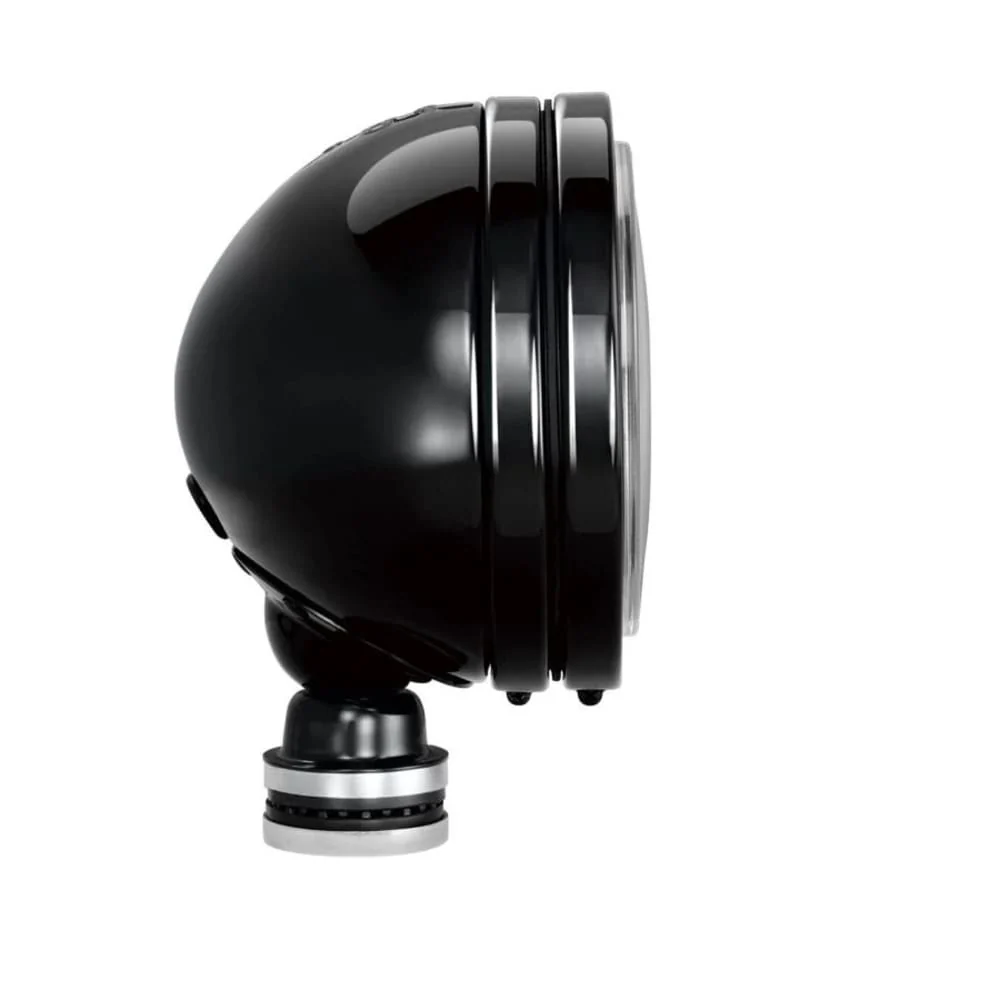

KC HiLiTES 6" Daylighter with Gravity LED G6 Pair Pack System

KC HiLiTES 6" Daylighter with Gravity LED G6 Pair Pack System



KC's 6" Gravity LED Daylighter feature 20w LED bulbs in a SAE legal driving pattern. Black steel housing and polycarbonate lens with FLEXible base for easy aiming. Pair includes complete wiring harness, switches, and ABS stone guards.

Features:

• Race Proven Strength & Durability: The race-proven steel housing combined with our IP67 rated Gravity® G6 LED optical insert creates an extremely strong and durable combination that will withstand the harshest of environments and terrains.
• Adjustable Mounting for Accuracy and Precision: Our time-tested Daylighter shock mount system is resilient and allows users to accurately aim the lights ensuring beam stability and consistency.
• Gravity GRD Extreme Output and Efficiency: Gravity Daylighters are powered by our G6 LED optical inserts which deliver an incredible 1,310 lx @10m using only 1.63A per light. Our patented GRD (Gravity® Reflective Diode) system aims the LEDs into the precision reflectors to capture all the light and project it forward.
• Available Beam Pattern and Advantages: Driving Beam - SAE & ECE street legal beams provide added peripheral visibility and while reaching further than stock lights.
• 2 x 20W Gravity® LED G6 optical inserts
• Black Powder Coated Steel housing
• Hard Coated Polycarbonate Lens
• Driving Beam Pattern

Specifications:

Per Light:

• LED Source: CREE XPL HD LED
• Amp Draw: 1.63A
• Voltage: 9V-32V

Weight	8.000000
Compliance DOT/SAE/ECE	SAE J581, ECE R112 (Driving)
Wattage Per Light	20W
Total Wattage	40W
Amp Draw Per Light	3.3 a
Voltage	9V-32V
Lumens Per Light	2,300 lm
Lux Per Light	1,310 lx
Candela Per Light	131,000 cd
Light Temp	5000 K
Lens Color	Clear
LED Color	White
Beam Pattern	Driving
Beam Distance	724 m
Light Technology	LED
Mount Location	A-Pillar / Ditch, Bumper, Overhead, Rear / Back-up
Size of Products	6"
Material	Stainless Steel
Product Finish	Black
Included Components	2 x Gravity LED™ Daylighter(Black Steel) SAE/ECE Driving Beam Light, Wiring Harness with Weatherproof Connectors, Illuminated LED Light Switch, 2 x 6" Protective KC Daylighter light Guards, Mounting Hardware
Color	Black
Product Dimensions	W: 6.22 " x H: 8.42 " x D: 5.38 "
UPC	084709006532
IP Rating	IP67

Kit Includes:

• 20W 6" Gravity® LED Daylighter lights
• Deluxe Wiring Harness w/ 2-Pin weatherproof connectors
• Protective KC Daylighter light Guards
• 30A Illuminated Switch w/ Switch Panel

Installation Instructions:

• Installation Guide - KC 6308 Wiring Harness
