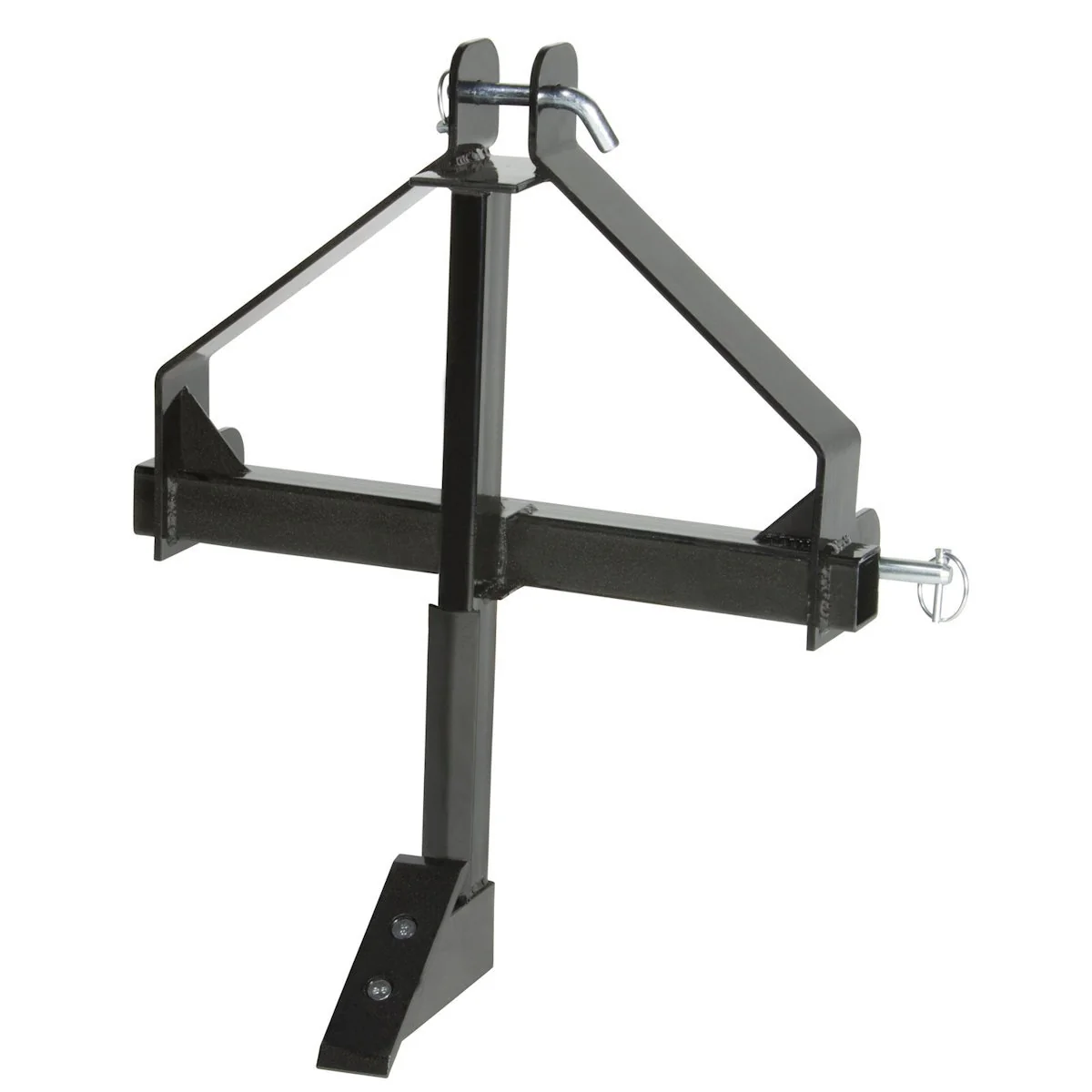

Impact Implements Cat-0 Middle Buster

Impact Implements Cat-0 Middle Buster

Is the ideal potato plow or breaking plow. It is useful for laying off rows, opening furrows, digging potatoes, pointing a ditch, digging trenches for water lines, and for general field prep. The subsoil point buts sod and loosens compacted soil. Attaches to CAT-0 / 3 Point Attachment Systems with the included pins.



Uses:

• Garden Tractor
• Lawn Tractor
• Any vehicle with a CAT-0 Hitch / 3 Point Attachment System installed

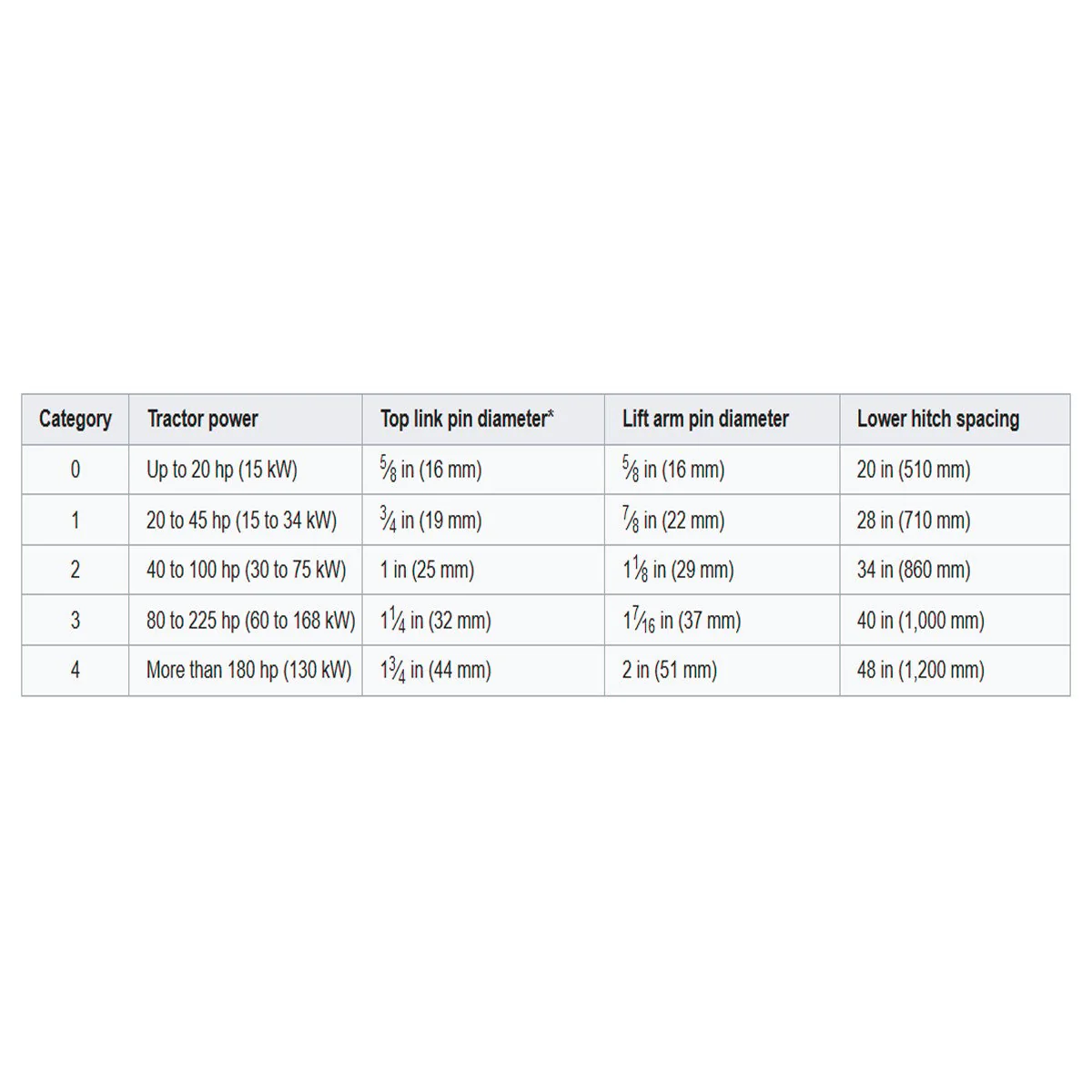

• NOTE: CAT-0 is defined as Tractor Power up to 20 hp (15 kW)

Features:

• Rigid drop shank
• Heavy duty stabilizer frame
• Replaceable / Reversible, tempered
• Integrated 3 Point CAT-0 quick mount
• Requires a CAT-0 Hitch / Three-Point Hitch (not included) already installed
• Assembly Required

Specs:

• Depth from bottom of hitch to bottom of blade: 11"
• Cutting edge: 2" (W) x 7" (L) x 3/8" (D)
• Maximum cutting depth: 10"
• 8-gauge 3-point frame
• 10-gauge main frame tube
• Weight: 29 lbs



Instructions:

• Installation Instructions
