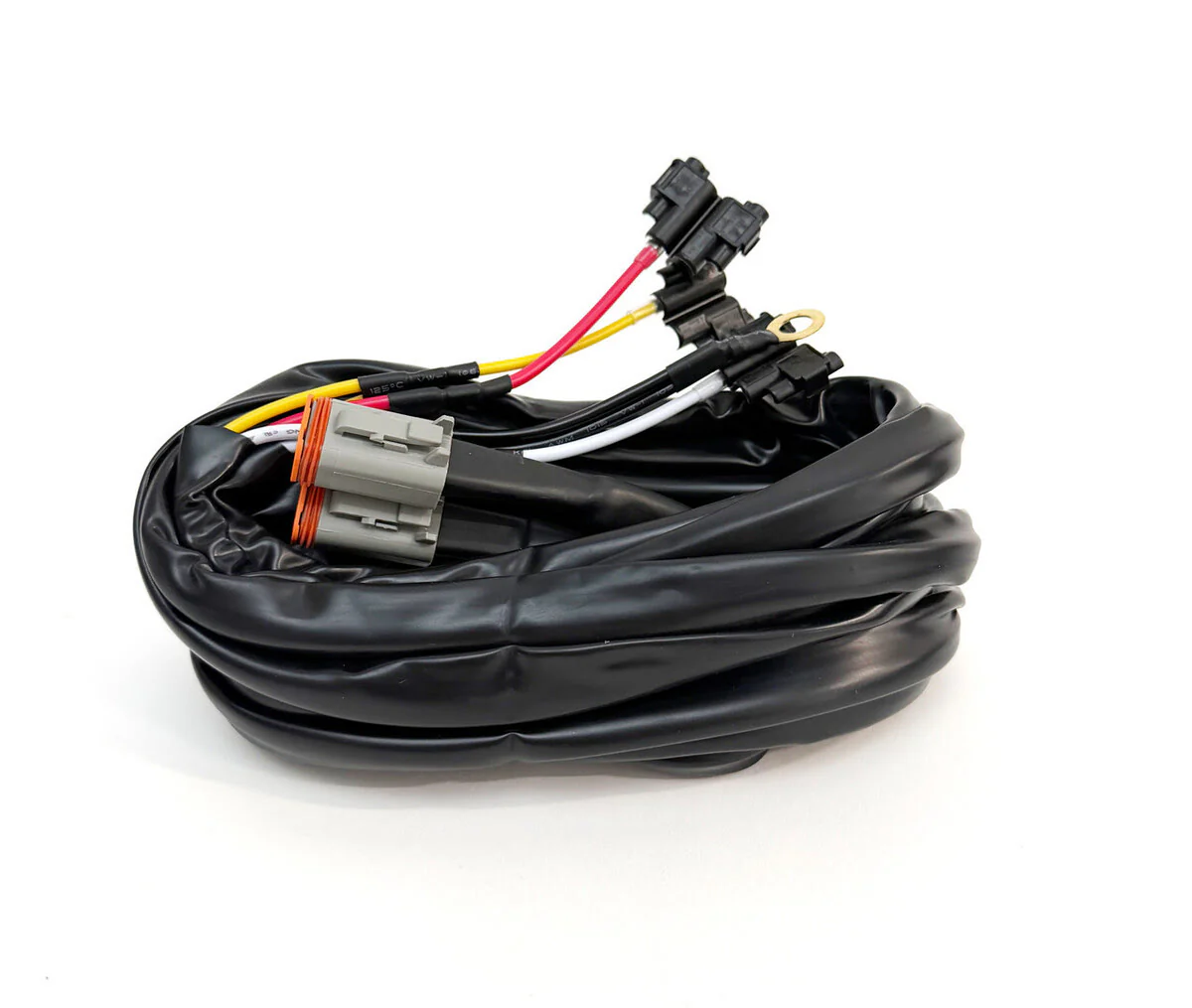

Baja Designs Dual Lead 4-Pin Deutsch-Style w/Hi/Low/Backlight Upfitter Universal Harness

Baja Designs Dual Lead 4-Pin Deutsch-Style w/Hi/Low/Backlight Upfitter Universal Harness



Dual 4-pin Deutsch-style upfitter harness with backlight integration. Harness can support a maximum of 2 Squadron 2.0 Pros or 5 Squadron 2.0 Sports (with appropriate splitter harnesses). Includes scotch locks. 170 Watts max.



Specifications:

• Intended use: Dual 4-pin Deutsch upfitter harness with backlight support

• For use with: Squadron 2.0 Sport, Squadron 2.0 Pro, LP4/LP6/LP9

• Harness Type: Upfitter

• Max Power: 170 Watts ~13 amps @13.5V

• Max Squadron 2.0 Sport: 2 or 5 w/splitters

• Max Squadron 2.0 Pro: 2

• Leads: 2

• Backlight integration: Yes, has backlight integration

• Light Branch Length: Scotchlok to Light: 96" (8 Ft.), 96" (8 Ft.)




Note:

• Hi/Low Feature intended for LP6/LP9



Installation Instructions:

• FGXX_64-0064-INS_001.pdf
