AJK Offroad Spare Tire Spindle Assembly

AJK Offroad Spare Tire Spindle Assembly

Our Spare Tire Spindle Assembly is a heavy duty spindle that works great for a swing away tire carrier. We have designed this Spindle Assembly so you can manufacture your own spare tire carrier.

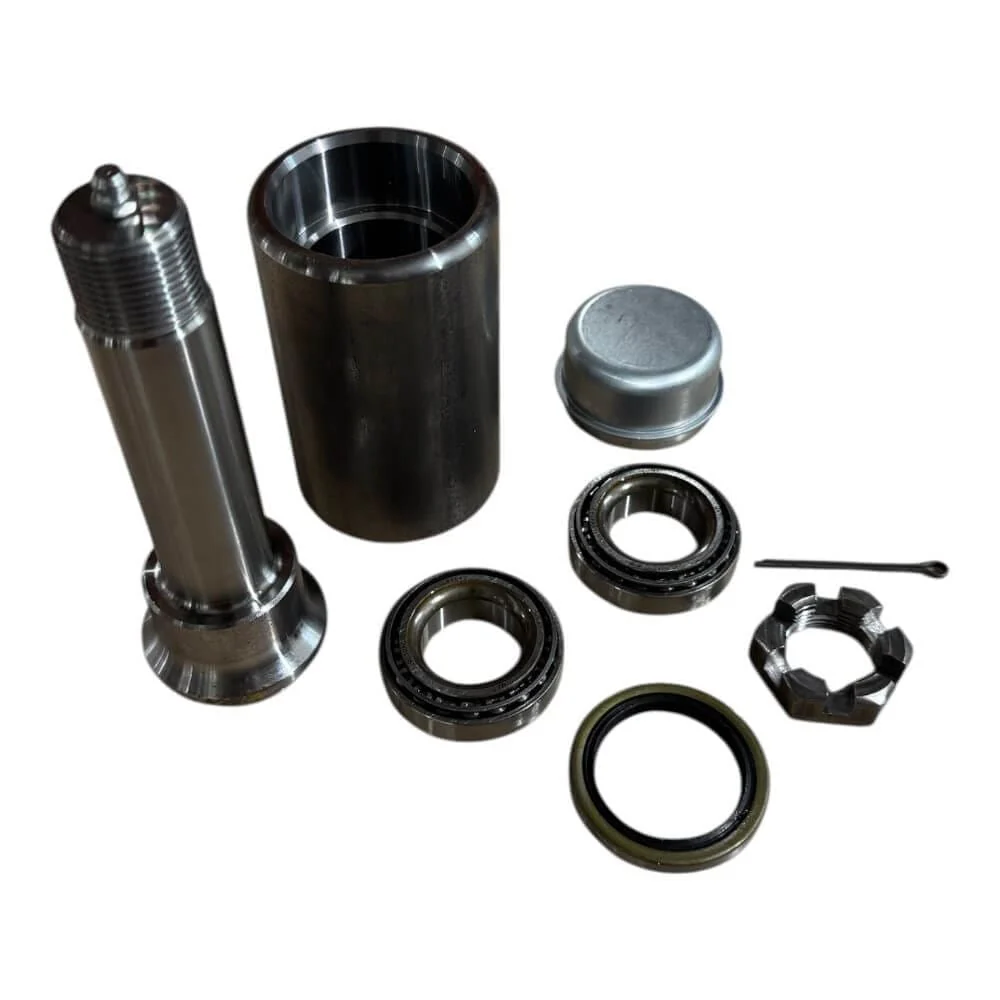

With our Spare Tire Spindle Assembly everything you need for a swing away tire carrier is in this kit. Both bearings, seal, nut, cotter pin, and dust cap are all included. The spindle has a turned dimeter of 1.3125" with a nice weld chamfer so you can recess the spindle in your bumper and weld around it and comes with a grease zerk. The full assembly is roughly 6.300" tall when assembled.



Features:

• Sold as a complete set

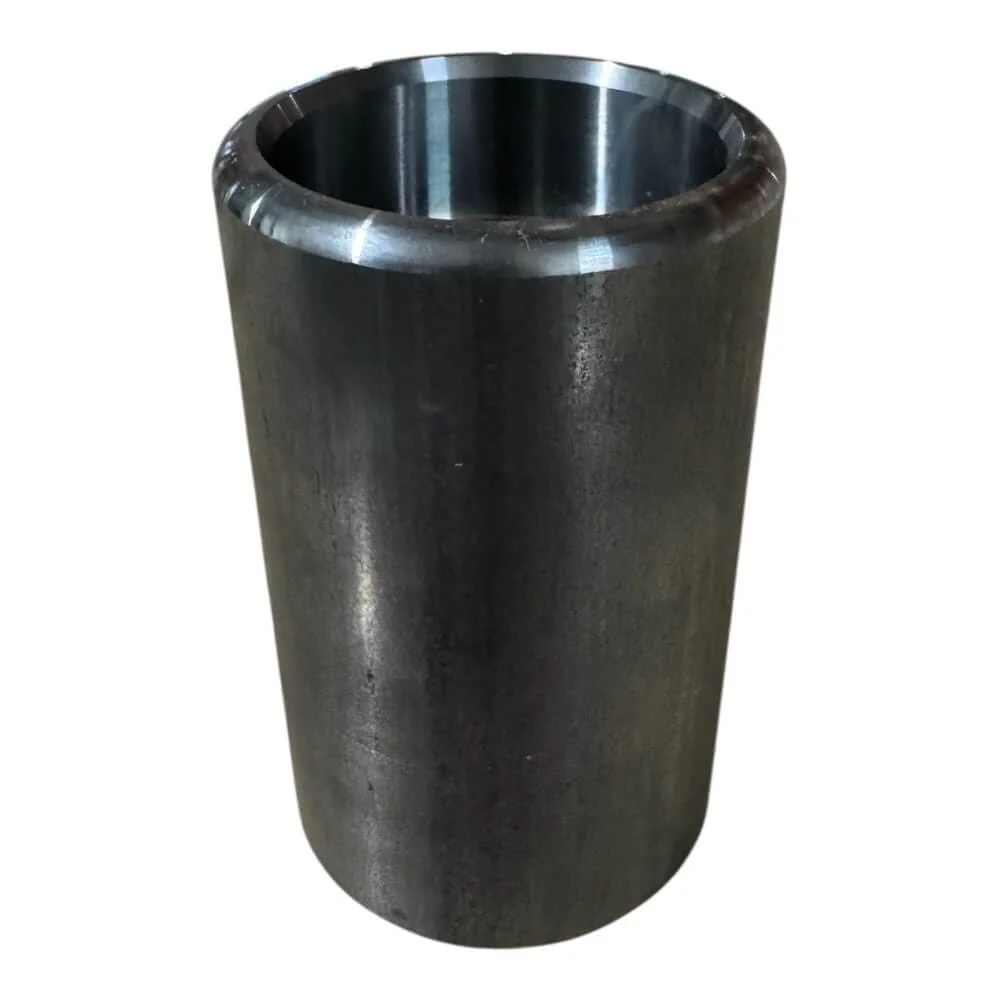

• 2.50" OD Diameter Tubing
• Tubing length 4.125"
• Great solution for tire carrier
• The Spindle has a grease zerk for easy maintaince
• Made in USA



Specifications:

• Weight: 6 lbs
• Dimensions: 4x6x6
